| PRODUCT CODE | DIMENSION | LENGTH | KG/M |
ANODISED PERIMETER | ||
|---|---|---|---|---|---|---|

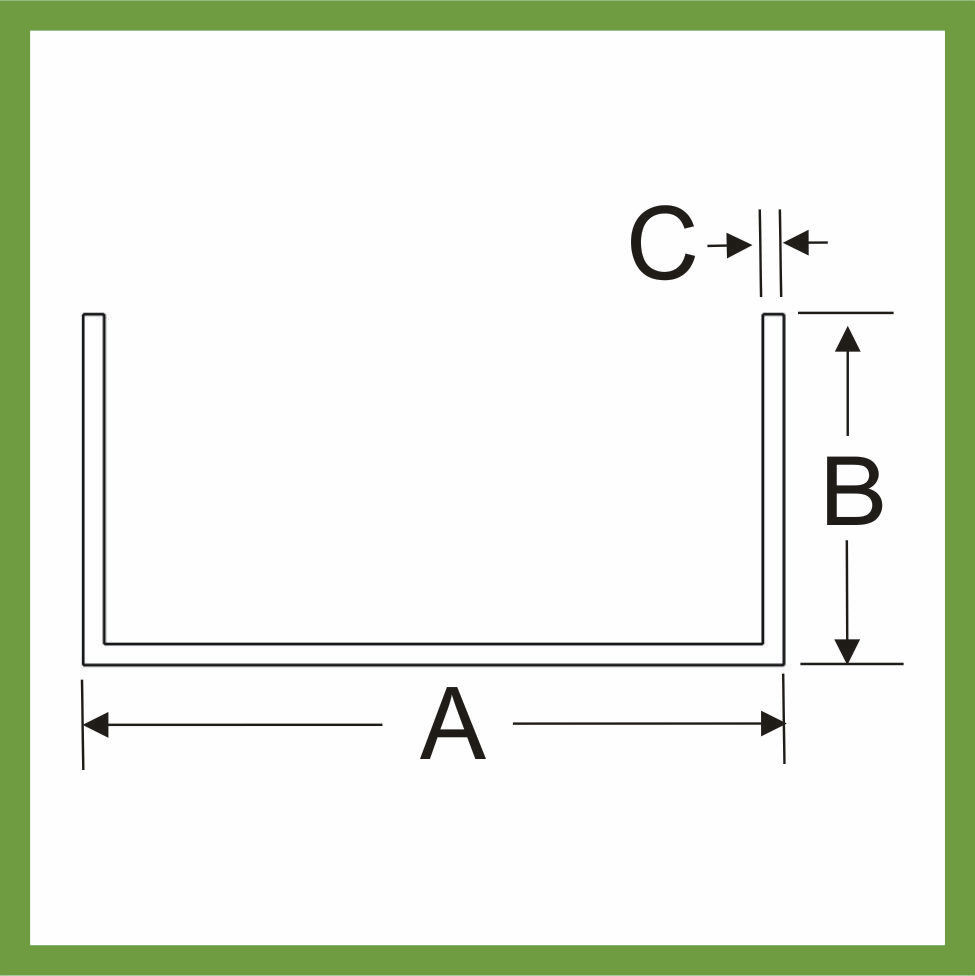

| A |
B | C | ||||
| CH20201660MFN | 20 | 20 | 1.6 | 6.0 | 0.245 | 117 |
| CH25251660MFN | 25 | 25 | 1.6 | 6.0 | 0.310 | 147 |
| CH25253065MNT | 25 | 25 | 3 | 6.5 | 0.558 | 144 |
| CH25403065MNT | 40 | 25 | 3 | 6.5 | 0.802 | 174 |
| CH32253060MFN | 32 | 25 | 3 | 6.0 | 0.615 | 158 |
| CH40253060MFN | 40 | 25 | 3 | 6.0 | 0.680 | 174 |
| CH50253060MFN | 50 | 25 | 3 | 6.0 | 0.761 | 194 |
| CH54301560MFN | 54 | 30 | 1.5 | 6.0 | 0.451 | 225 |
| CH56402060MFN | 56 | 40 | 2 | 6.0 | 0.713 | 268 |
| CH59403060MFN | 59 | 40 | 3 | 6.0 | 1.129 | 272 |
| CH64586058MFN | 64 | 58 | 6 | 5.8 | 2.732 | 348 |
| CH65403060MFN | 65 | 40 | 3 | 6.0 | 1.138 | 284 |
| CH80253060MFN | 80 | 25 | 3 | 6.0 | 1.004 | 254 |
| CH100253060MFN | 100 | 25 | 3 | 6.0 | 1.171 | 294 |
| CH100454560MFN | 100 | 45 | 4.5 | 6.0 | 2.228 | 371 |
| CH100503060MFN | 100 | 50 | 3 | 6.0 | 1.572 | 394 |
| CH100503065MFN | 100 | 50 | 3 | 6.5 | 1.571 | 394 |
| CH100508065MFN | 100 | 50 | 8 | 6.5 | 3.576 | 384 |
| CH127641055MFN | 127 | 63 | 9.53 | 5.5 | 5.727 | 487 |
| CH152636060MFN | 152 | 63 | 6 | 6.0 | 4.177 | 544 |
| CH180805559MFN | 180 | 80 | 5.5 | 5.9 | 4.780 | 669 |
